2009 John Deere XUV 850D 4X4
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Choice of Colors

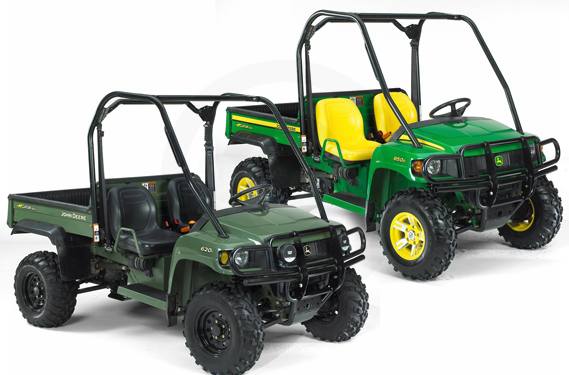

    • The 850D 4x4 is available in 2 color schemes: John Deere Green & Yellow or Olive & Black
    Reliable/Durable
    • 854 cc (24.6 hp) liquid-cooled, 3-cylinder , 4-cycle Yanmar diesel engine has more horsepower for incredible performance in any terrain; best-in-class diesel unit is the most powerful, fastest accelerating, and fastest top speed diesel in its class
    • 30 mph top speed (17 mph in low range) allows you to be more efficient, herd livestock, or cover a field faster
    • Increased acceleration for improved performance
    • Advanced clutching with a tighter belt provides increased acceleration, smoother at low speeds, and efficient engine braking to assist descending down hills
    • Standard Occupant Protection System (OPS) with a passenger-side hand-hold and 3-point seat belts is SAE and OSHA ROPS-certified, providing rugged "off-road" looks and protection
    • Two-range CVT transmission for superior low-speed pulling and towing ability
    • Long lasting front and rear hydraulic service brakes with mechanical rear park brake provide an automotive-style brake system with a dual circuit for the greatest reliability and a smoother-feeling engagement
    • Hydroformed frame for unmatched strength and durability
    • Engineered plastic (JDLOY) can be painted and provides improved scratch and marring resistance/recoverability
    • Standard bumper protects the vehicle
    Stable
    • Independent Rear Suspension (IRS) provides excellent ride quality and superior terrain capability
    • 7-inch suspension travel soaks up bumps and terrain while maintaining traction through any condition
    • 11-inch ground clearance for greater access over obstacles on the trail and superior terrain capability
    • Larger styled wheels (12 inches) and tires (25 inches) for greater ground clearance and sporty good looks
    Go Anywhere Capability
    • On-demand, "true" 4-wheel drive gives you total control; select a completely turf friendly mode of operation, or press the switch and get on-demand 4-wheel drive for climbing the toughest trails
    • Rear traction assist locks the rear drive wheels together to push through tough spots
    • Improved steering further reduces steering effort for assured predictability
    • Choice of Aggressive Tread Tires (AT489) or All-Purpose (All Trail II) Tread Tires
    • Optional automotive-style, deluxe glass cab and other weather protection accessories for the OPS are available to keep you going in almost any weather condition
    Easy To Use
    • Standard integrated 2-inch rear receiver hitch
    • Attractive styling with integrated features such as cup holders, 12-volt outlet, glove box, storage compartment, and fuel gauge
    Engine and Electrical
    • Manufacturer: John Deere
    • Model: Gator 850D XUV 4x4 Diesel
    • Make: Yanmar 3TNV70
    • Type: 4-cycle diesel
    • Cylinders: 3
    • Valving: OHV
    • Horsepower: 24.6 hp (18.3 kw)
    • Displacement: 854 cc
    • Maximum torque: 36.9 ft.-lbs. (50 Nm) @ 2,400 rpm
    • Iginition type: Compression ignition
    • Lubrication: Full pressure
    • Oil filter: Screw on filter
    • RPM, idle (no load): 1050 +/- 25
    • RPM, fast (no load): 3700 +/- 25
    • Cooling system: Liquid
    • Air cleaner: Dry, replaceable single element with remote intake
    • Battery: 480CCA
    • Alternator: 40 amp @ 3,200 rpm regulated, 540 watts
    • Headlights: Two 37.5 watt halogen
    Fuel System
    • Capacity, U.S.: 5.3 gal. (20.1 l)
    • Consumption (half load at avg. speed), U.S.: 0.5 gal./hr. (1.89 l/h)
    • Fuel pump type: Electric
    4WD
    • System Type: On-demand true four-wheel drive system
    • Front Differential (Engagement): Auto-locking (On/off rocker switch)
    • Rear Differential (Engagement): Positive locking, mechanically actuated (hand-operated)
    Transmission
    • Type: Continuously Variable Transmission (CVT)
    • Drive belt: Spun top cog, 31 mm wide
    • Ground speed: 0-30 mph (0-48 km/h) Hi Forward, 0-15 mph (0-24 km/h) Lo Forward, 0-17 mph (0-27 km/h) Reverse
    • Transaxle: Two speed, oil bath
    • Gear Selection: Forward (hi-lo), Netural, Reverse
    • Overall Reduction Ratio Low: 86.8488:1
    • Overall Reduction Ratio High: 86.8488:1
    • Overall Reduction Ratio Reverse: 75.9333:1
    • Brakes: Front/rear hydraulic disk
    • Park brake: Driveline mechanical disk, hand operated
    • Bearings: Sealed, double-row ball
    • Axle: 27 mm dia., forged CV-shaft with Double Offset Joint
    Suspension and Steering
    • Suspension, front: Independent with McPherson Strut
    • Front Susp. Travel (total): 5.15 in. (131 mm)
    • Suspension, rear: Independent with coil over shock
    • Rear Susp. Travel (total): 7 in. (170 mm)
    • Steering: Rack and Pinion
    • Turning radius: 12.4 ft. (3.8 m)
    Hitch
    • Front: Optional 2-in receiver
    • Rear: Standard 2-in receiver
    Occupant Protective System (OPS)
    • Tubular overhead structure: 1.75 in (44.4 mm) steel tube
    • Passenger grab handles: Front OPS post, front dash and on both sides of seat
    • Seat belts: 3-point
    • Certification: SAE J2194 and OSHA ROPS standard
    Ground Pressure (max)
    • With 200-lbs. Operator Only: 14 psi (0.98 kg/cm2)
    • Fully Loaded Vehicle: 14 psi (0.98 kg/cm2)
    Ground Clearance
    • Ground Clearance: 11 in. (267 mm)
    • Under Foot Platform: 12.25 in. (311 mm)
    Dimensions
    • Length (w/out bumper): 108 in. (2,743 mm)
    • Length (with bumper): 113 in. (2,870 mm)
    • Width: 59.3 in. (1,506 mm)
    • Front-tread Centers: 44.8 in. (1,137 mm)
    • Rear-tread Centers: 47.9 in. (1,216 mm)
    • Height (overall with OPS): 74.375 in. (1,889 mm)
    • Wheelbase: 79.0 in. (2,007 mm)
    • Weight (incl. fuel/fluids): 1,532 lbs. (695 kg)
    • Seating Capacity: 2
    • Seat Type: Professional high back bucket, tilt forward
    • Towing Capacity: 1,300 lbs. (590 kg)
    • Payload Capacity: 1,400 lbs. (635 kg)
    • Sound rating (at operator's ear): 91.1 dB(A)
    Cargo Box
    • Material: Steel
    • Dimensions: 43.9L in. x 49W in. x 9D in. (1,116L mm x 1,244W mm x 229D mm)
    • Volume: 11.2 cu. ft. (0.32 m3)
    • Weight: 1,000 lbs. (454 kg)
    • Dump: Manual (factory installed power lift option)
    • Tailgate: Hinged at bottom, removable
    Tires
    • Front: 25 x 10-12 (AT489), 25 x 9-12 (All Trail II)
    • Turf & AT489: 25 x 11-12 (AT489 only)
    • All Trail II: 25 x 11-12
    • Available Tread Types: Standard (All Trail II), Aggressive (AT489)
    Color
    • Options: Green/Yellow

    Specifications

    Engine
    Engine Type 4-cycle diesel
    Displacement 854 cc
    Cooling Liquid
    Fuel System Diesel
    Ignition Compression ignition
    Chassis
    Front Suspension Independent with McPherson Strut
    Front Brakes Hydraulic Disk
    Front Tire 25 x 10-12 (AT489), 25x9-12 (All Trail II)
    Rear Suspension Independent with coil over shock
    Rear Brakes Hydraulic Disk
    Dimensions
    Front Travel 5.15 in. (131 mm)
    Fuel Capacity 5.3 gal. (20.1 l)
    Rear Travel 7 in. (170 mm)
    Wheelbase 79.0 in. (2,007 mm)
    Ground Clearance 11 in. (267 mm)
    Transmission
    Transmission Continuously Variable Transmission (CVT)
    Drive System On-demand true four-wheel drive system
    General
    Colors Green/Yellow

    Compare Models

    		 Print








    Year 2009
    Manufacturer John Deere
    Model XUV 850D 4X4
    Style Gator
    Chassis
    Front Suspension Independent with McPherson Strut
    Front Brakes Hydraulic Disk
    Front Tire 25 x 10-12 (AT489), 25x9-12 (All Trail II)
    Rear Suspension Independent with coil over shock
    Rear Brakes Hydraulic Disk
    Rear Tire
    Dimensions
    Dry Weight
    Front Travel 5.15 in. (131 mm)
    Fuel Capacity 5.3 gal. (20.1 l)
    Rear Travel 7 in. (170 mm)
    Wheelbase 79.0 in. (2,007 mm)
    Ground Clearance 11 in. (267 mm)
    Box Capacity
    Rack Capacity
    Towing Capacity
    Engine
    Engine Type 4-cycle diesel
    Displacement 854 cc
    Bore and Stroke
    Cooling Liquid
    Compression Ratio
    Fuel System Diesel
    Ignition Compression ignition
    General
    Speedometer
    Tachometer
    Odometer
    Colors Green/Yellow
    Warranty
    Transmission
    Transmission Continuously Variable Transmission (CVT)
    Drive System On-demand true four-wheel drive system
