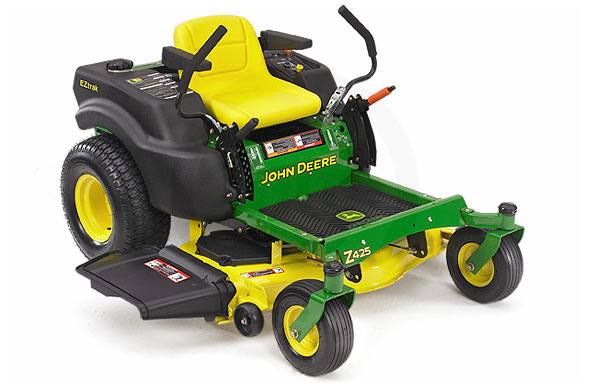

2009 John Deere EZtrak™ Z425, 54-inch Deck
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Power
    • 23-hp Briggs & Stratton V-Twin, air-cooled engine
    Performance
    • Heavy-duty pump and wheel-motor drive system for extra durability and long life; Kanzaki pump; Parker wheel motors
    • Caster wheels and caster wheel towers have sealed bearings for long life and easy steering
    • Offset front caster wheels help improve inside corner trim performance and also help reduce between-blade striping
    • 54-inch Edge™ mower deck with 1/4-inch cut-height increments for excellent cut quality and performance; cut-height adjustment has built-in memory
    • 8.5-mph ground speed
    Durability
    • Tough 1-1/2-inch x 2-inch frame tubing
    Comfort and Convenience
    • Medium-back (15-inch) seat with adjustable armrests; no-tools fore-aft seat adjustment with a 3-inch range can be be used by the operator while seated
    • Large 13-inch front caster wheels for a smoother ride; large 22-inch drive tires for better traction and slope performance
    • Two cup holders and open storage compartment
    Motion-Control Levers
    • Adjustable motion-control levers can be adjusted to three different height settings and five different fore-aft settings for increased comfort and more precise control of the machine
    • Standard shock absorber for the motion control levers make it easy and comfortable to maneuver; shock absorber modulates movement of control levers for smoother operation; operator can smoothly and precisely control machine
    Serviceability
    • Commercial-style steel footrest flips up to provide easy access for servicing the mower deck; easy to clean grass off top of mower; provides convenient access to mower drive
    • Fuel tank is made of translucent material; makes it quick and easy to see how much fuel is in the tank; large fuel-fill opening reduces the chance of spilling fuel
    Engine
    • Power: 23 hp (17.2 kW)
    • Displacement: 44.2 cu. in. (725 cc)
    • Manufacturer: Briggs & Stratton
    • Cylinders: V-twin
    • Lubrication: Full pressure with replaceable filter, 1.75 qt capacity
    • Type: OHV
    • Battery: 12 volt, 235 cold-crank amps
    • Choke/speed control: Single lever
    • Cooling method: Air
    • Fuel tank capacity: 3.5 gal. (13.2 l)
    • Fuel gauge: Yes
    Drive train
    • Hydraulic pumps: Kanzaki Dup-10
    • Wheel motors: Parker
    Travel speed
    • Forward speed, mph (km/h): 8.5 (13.7)
    • Reverse speed, mph (km/h): 3.5 (5.6)
    • Speed and direction control: Twin levers
    • Control adjustment: 3-height / 5-fore-aft
    Chassis
    • Frame: Heavy-duty frame tubing
    • Primer/paint: E-coat/powder
    • Front caster tires: 13x5.0-6
    • Front caster bearings: Sealed ball bearings
    • Drive tires: 22x9.50-10
    • Hourmeter: Yes
    • Service interval decal: Yes
    • Storage compartment: Yes
    • Cup holder: Yes
    Seat
    • Seat back height: 15 in. medium-back w/armrests
    • Fore-aft adjustment: 3 in. while seated
    Lift system
    • Type: Hand lever
    • Mower cut height: 1-4 in.
    • Cut height increments: 0.25 in.
    • Preset cut height: Yes
    Mower deck
    • Width of cut: 48 in.
    • Type: Side discharge
    • Mower deck material: 54X = 10 gauge, .120 in. (3 mm)
    • Mower drive system: V-belt
    PTO
    • Type: Electric, 125 ft-lb
    • Drive: Belt
    Dimensions
    • Wheelbase: 48-in. (122 cm)
    • Overall length: 74.7-in. (190 cm)
    • Width without mower: 47.4-in. (120 cm)
    • Width with mower: 67.7-in. (172 cm)
    • Width with mower (deflector raised for storage): 59.7-in. (152 cm)
    • Height: 38.6-in. (98 cm)
    • Weight: 660 lb. (299 kg)
    Safety
    • Operator presence system: Yes
    • Park brake interlock: Yes
    • Safety video: Yes
    Optional Attachments
    • Powered collection: 6.5 bu. Power Flow MCS
    • Mulching system
    • Double light kit
    • Rubber floor mat
    • Mounted sprayer: 15 gallon
    Warranty
    • 2 Year

    Specifications

    Engine
    Engine Manufacturer Briggs & Stratton
    Horse Power 23 hp (17.2 kW)
    Engine Type V-twin
    Displacement 44.2 cu. in. (725 cc)
    General
    Wheel Size Front caster tires: 13x5.0-6; Drive tires: 22x9.50-10
    Fuel Capacity 3.5 gal.
    Deck
    Deck Size 54 in.
    Discharge Type Side; Optional: Bagger; Mulcher

    Compare Models

    		 Print








    Year 2009
    Manufacturer John Deere
    Model EZtrak™ Z425, 54-inch Deck
    Style Riding
    MSRP* $4,099.00
    Deck
    Deck Size 54 in.
    Discharge Type Side; Optional: Bagger; Mulcher
    Engine
    Engine Manufacturer Briggs & Stratton
    Horse Power 23 hp (17.2 kW)
    Engine Type V-twin
    Displacement 44.2 cu. in. (725 cc)
    General
    Transmission
    Wheel Size Front caster tires: 13x5.0-6; Drive tires: 22x9.50-10
    Fuel Capacity 3.5 gal.
